13 April 2024

Replace Promtail with new Grafana Alloy

An announcement was made at GrafanaCON. Alloy is introduced in the family of Grafana tools. Alloy is an open source distribution of the OpenTelemetry Collector, but is will also replace Promtail.

In the Observability Toolkit I use both Promtail and OpenTelemetry Collector, so it makes sense to merge them.
In this blog post I will replace Promtail with Alloy. In another post I will see how replacing of OpenTelemetry Collector with Alloy will look like.

Replace Promtail with Alloy


In preparation for my talk ‘How visualizing logs converted to traces can uncover performance problems’ I use Promtail to load the log files into Loki and to prevent revealing sensitive information I use Promtail’s replace feature to replace and hash some data.
After hashing, you can still see the difference between 2 user accounts for example, but you can’t see the actual usernames.

This is a part of the Promtail configuration file:

  filename: /var/log/positions.yaml # This location needs to be writeable by Promtail.

  - url: http://loki:3100/loki/api/v1/push


# /var/log folder is mounted
# So you can use __path__: /var/log in the scrape config to scrape files.
  - job_name: auth_accesslog
      enabled: false
      format: "z"

      - labels:
          logType: accesslog
          __path__: /var/log/accesslog/*.log  # The path matching uses a third party library: https://github.com/bmatcuk/doublestar
      - replace:
          # IP4
          expression: '(\d{1,3}[.]\d{1,3}[.]\d{1,3}[.]\d{1,3})'
          replace: '*IP4*{{ .Value | Hash "salt" }}*'
      - replace:
          # hostname
          expression: '\[host: (\S+)]'
          replace: 'host-{{ .Value | Hash "salt" | trunc 30 }}'

Let’s see how I can use Alloy as replacement of Promtail.


The installation of Alloy is easy. Multiple options are described in the Alloy documentation.
As I want to use the migration option of Alloy I installed it as binary on my local Linux machine.

alloy --version

alloy, version v1.0.0 (branch: HEAD, revision: 1eef9b3ae)
  build user:       root@7197b65efb7f
  build date:       2024-04-05T20:54:07Z
  go version:       go1.22.1
  platform:         linux/amd64
  tags:             netgo,builtinassets,promtail_journal_enabled

Convert configuration file

The installation went smoothly, now the configuration migration.
Alloy comes with a migration option and it is well described. In my case, I want to migrate from [Promtail to Alloy] (https://grafana.com/docs/alloy/latest/tasks/migrate/from-promtail/).

The shell command for that is very straight forward:

alloy convert --source-format=promtail --output=parse_files_config.alloy promtail-config.yaml

This command created an Alloy configuration file.
This is what a snippet of that file looks like in my situation:

local.file_match "auth_accesslog" {
	path_targets = [{
		__address__ = "localhost",
		__path__    = "/var/log/accesslog/*.log",
		logType     = "accesslog",

loki.process "auth_accesslog" {
	forward_to = [loki.write.default.receiver]

	stage.replace {
		expression = "(\\d{1,3}[.]\\d{1,3}[.]\\d{1,3}[.]\\d{1,3})"
		replace    = "*IP4*{{ .Value | Hash \"salt\" }}*"

	stage.replace {
		expression = "\\[host: (\\S+)]"
		replace    = "host-{{ .Value | Hash \"salt\" | trunc 30 }}"


loki.source.file "auth_accesslog" {
	targets    = local.file_match.auth_accesslog.targets
	forward_to = [loki.process.auth_accesslog.receiver]

	decompression {
		enabled = false
		format  = "z"
	legacy_positions_file = "/var/log/positions.yaml"

loki.write "default" {
	endpoint {
		url = "http://loki:3100/loki/api/v1/push"
	external_labels = {}

You can see the Alloy components with the configuration per component and how they are linked.
The links create a flow between the components, which is how the actual content is routed.
From loki.source.file named “auth_accesslog” to loki.process named “auth_accesslog” and finally to loki.write named “default”.
And you can see that the positions file is also migrated, which prevents files previously parsed by Promtail from being parsed again by Alloy.

Testing the configuration

The new configuration file can easily be tested:

alloy run ./

Alloy also comes with a built-in user interface, which is available at: http://localhost:12345/graph

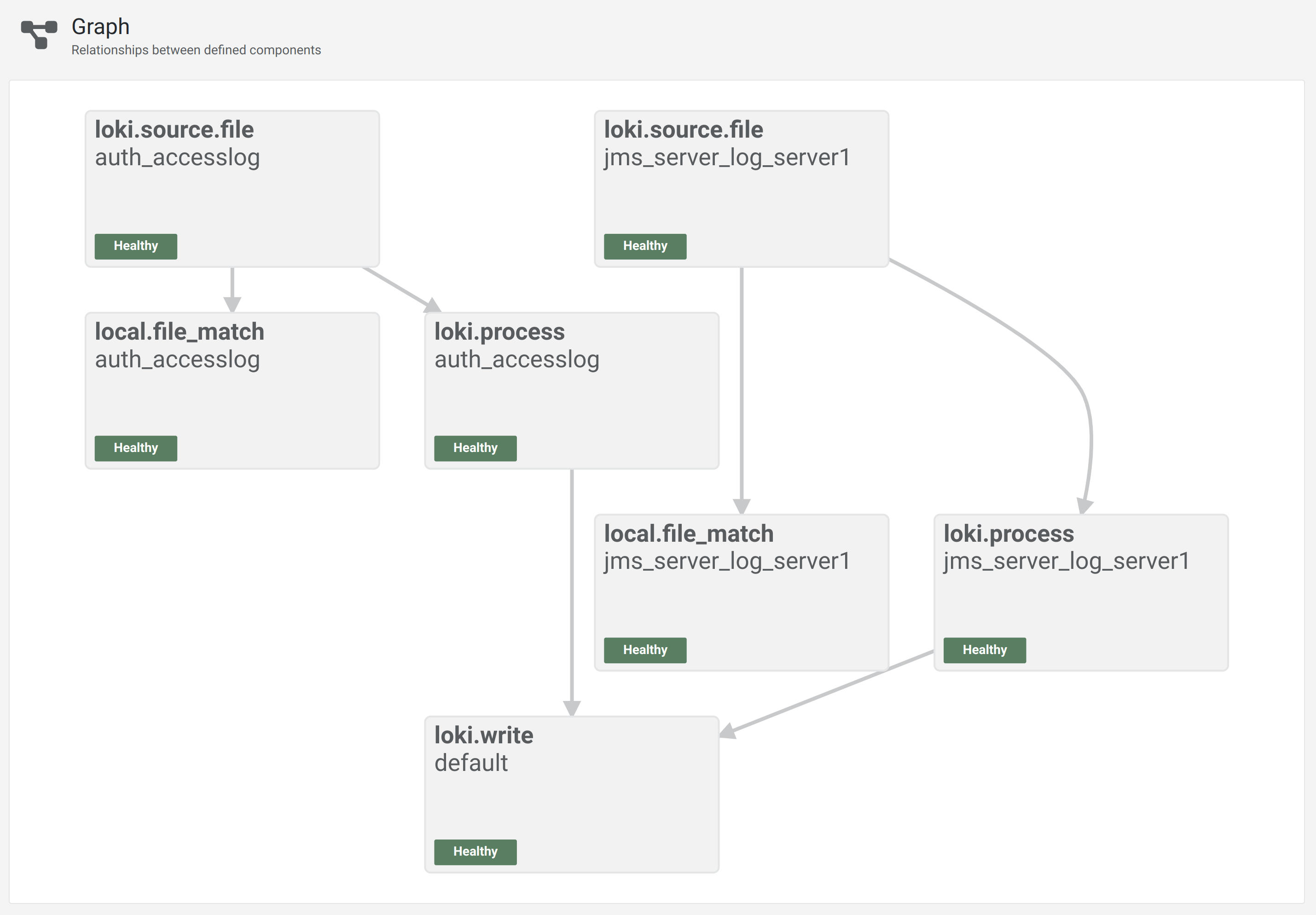

In my case it looks like this: Configuration graph

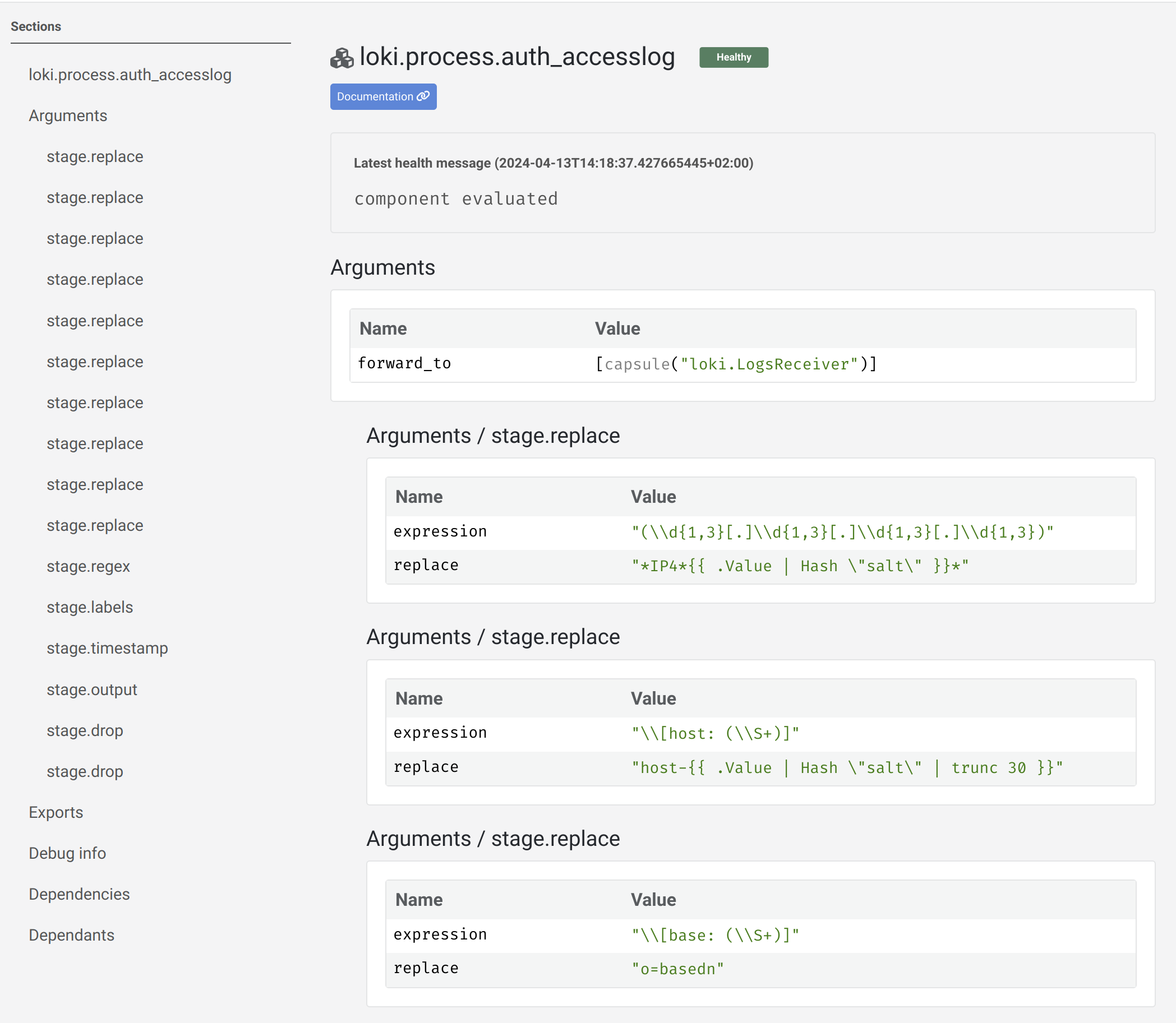

You can click on the individual parts to see what is actually being used: Configuration details


The configuration migration went very smoothly. I did not replace the Docker container yet in the Observability Toolkit, I will do that in my next blog post when I also migrated the OpenTelemetry Collector configuration.
