Monitoring Buddy Hackathon - Day 2

After a day of rest on Sunday, what I am used to have, I started the second day early.

First idea to explore is what the combination Grafana MCP and LLM can do to help to find problems in the OpenTelemetry Demo setup.

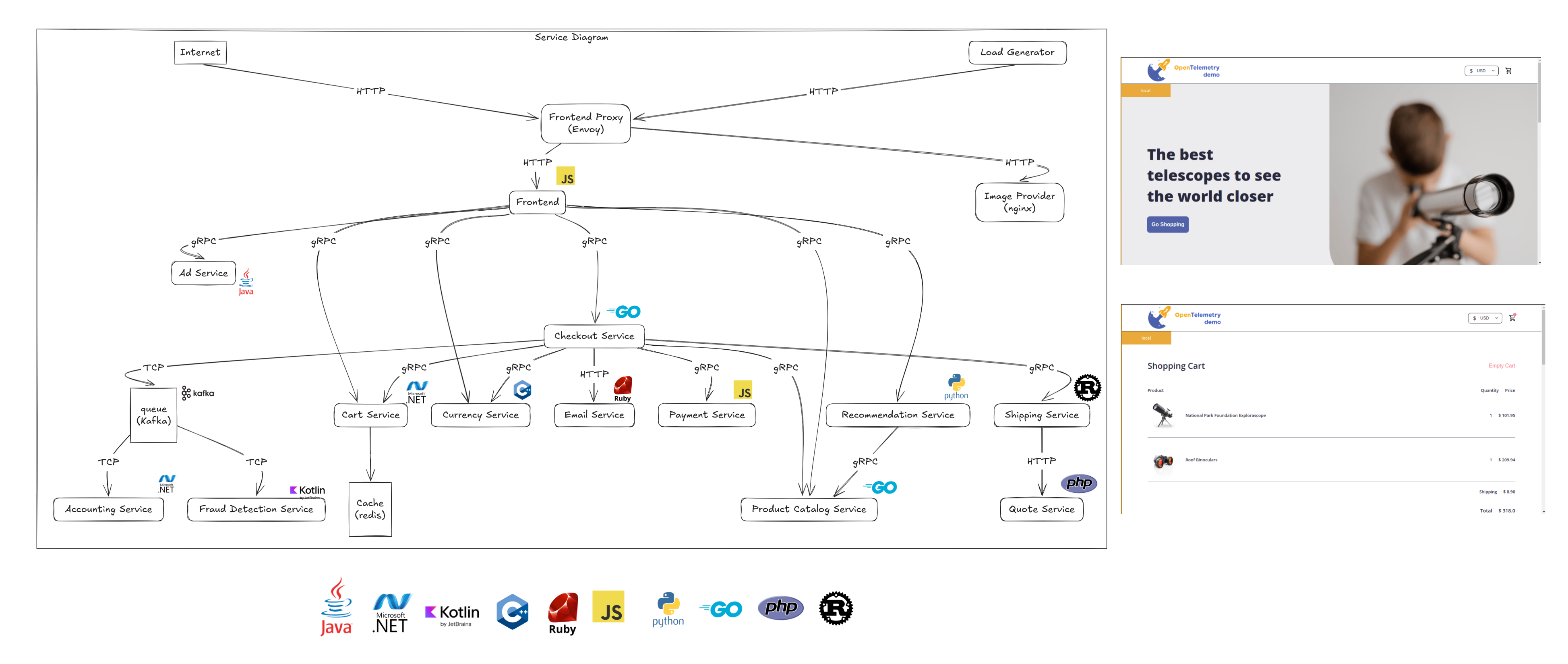

The OpenTelemetry Demo is a webshop with several services, like product catalog, checkout, ad service, etc, but all developed with a different programming language to showcase the capabilities of OpenTelemetry.
This is a perfect use case to explore the capabilities of the Grafana MCP and LLM.

This setup includes a flagd service, which is a feature flag service. This service is used to enable or disable failures on request.
I enabled one of the failures, so I could see if I could find the service that caused the problem.

I asked some more questions but I forgot to create a screenshot of the conversation, unfortunately. But as I enabled the observability of my app, I still get the details from the logging and traces.

We had a problem with the OpenTelemetry webshop in the past half hour, can you find which service caused this? service graph metrics are enabled

“I could not find a Grafana dashboard specifically named “webshop” or “service graph.” However, I found some relevant service graph metrics available in Prometheus, such as:

• traces_service_graph_request_client_seconds_bucket
• traces_service_graph_request_client_seconds_count
• traces_service_graph_request_client_seconds_sum
• traces_service_graph_request_failed_total

Then I asked - based on traces_service_graph_request_failed_total, can you tell which service it was?

Based on the traces_service_graph_request_failed_total metric, the “server” label indicates which service the failed requests targeted. The services recorded with failures are:

• accounting
• adservice
• checkoutservice
• flagd
• frontend
• frontend-proxy
• imageprovider
• productcatalogservice If you’d like to see failure counts for a particular service or need to explore related data in Grafana, let me know and I can provide a ready-to-use dashboard link or query!”

So this is getting closer, but not the answer I hoped for. I wanted to know which service was the last in the chain of services that caused the problem.

So I tried it with some more details:
based on traces_service_graph_request_failed_total, can you tell which service it was? client label says which service send the request, server label which service handled the request. So there is a chain of services, can you give the chain and tell which one was the last in the chain with errors?

The answer:

“Based on the traces_service_graph_request_failed_total metric, here is the observed chain of failing requests (client -> server):

1. user/loadgenerator/frontend-web → frontend-proxy → frontend
2. frontend → productcatalogservice, checkoutservice
3. checkoutservice → productcatalogservice
4. frontend-proxy → frontend
5. paymentservice/adservice → flagd

The final “server” in each chain represents the service where errors were last recorded. From the data, the last services in the chain with observed failed requests are:

• frontend
• productcatalogservice
• checkoutservice
• flagd

At first the LLM did not came up with the answer I wanted. So I had to ask some more questions. That came closer, but still not the answer I hoped for.
Hopefully with some more steering and input I will be be able to get the answer I hope.
But first we had a break …

Break - climbing outdoor activity

As team outing activity we went to a place where we could go climbing. Here are some pictures of me in action:

After a refreshment in the swimming pool after this activity, it was time to continue with the hackathon.

Continuing with the hackathon

After the break I continued with the hackathon. Let’s try to see what happens if I make the ’@SystemMessage’ instruction more specific.
The OpenTelemetry Demo is running again and I toggled the flagd to introduce some failures in the ‘product catalog service’.

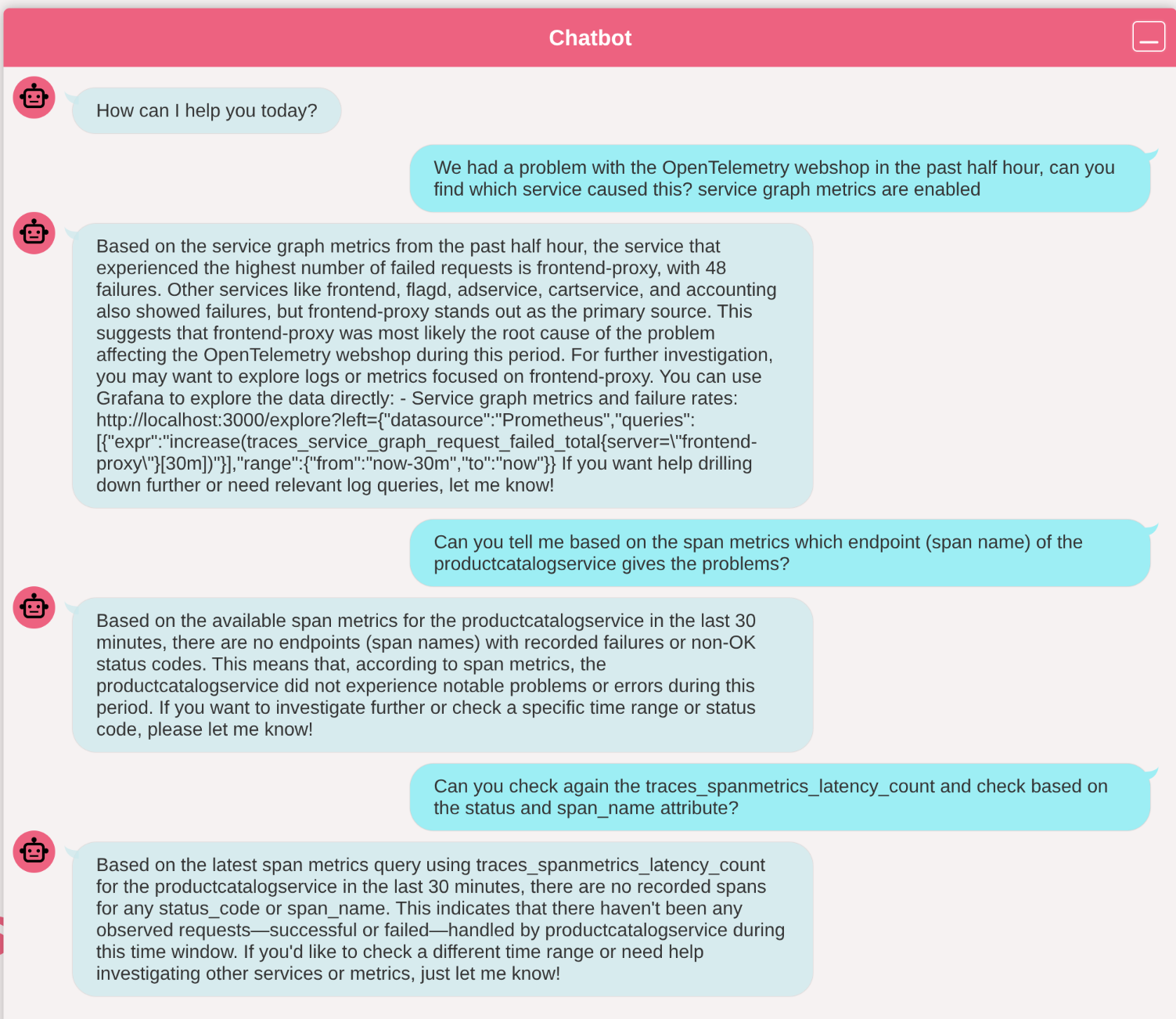

Let’s see if my monitoring buddy can find the problem:

So it can find some problems, but not the problem as I hoped for, even with the more specific instruction.

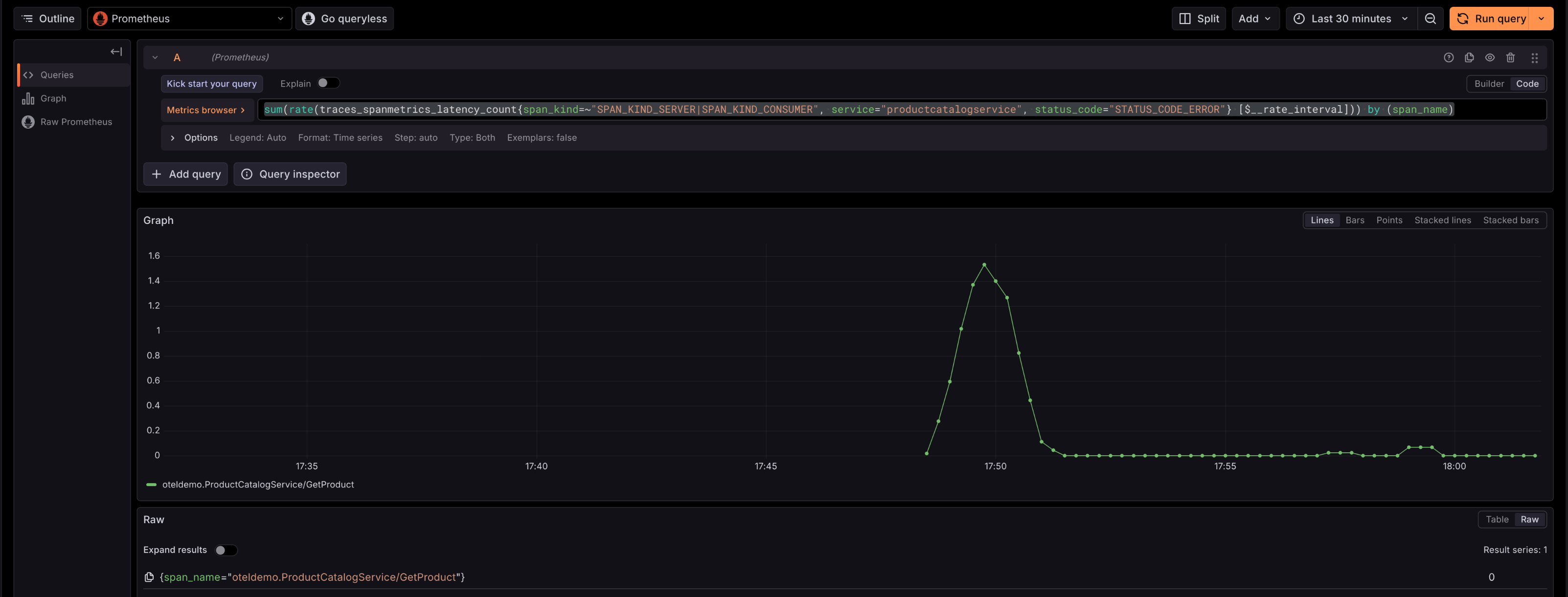

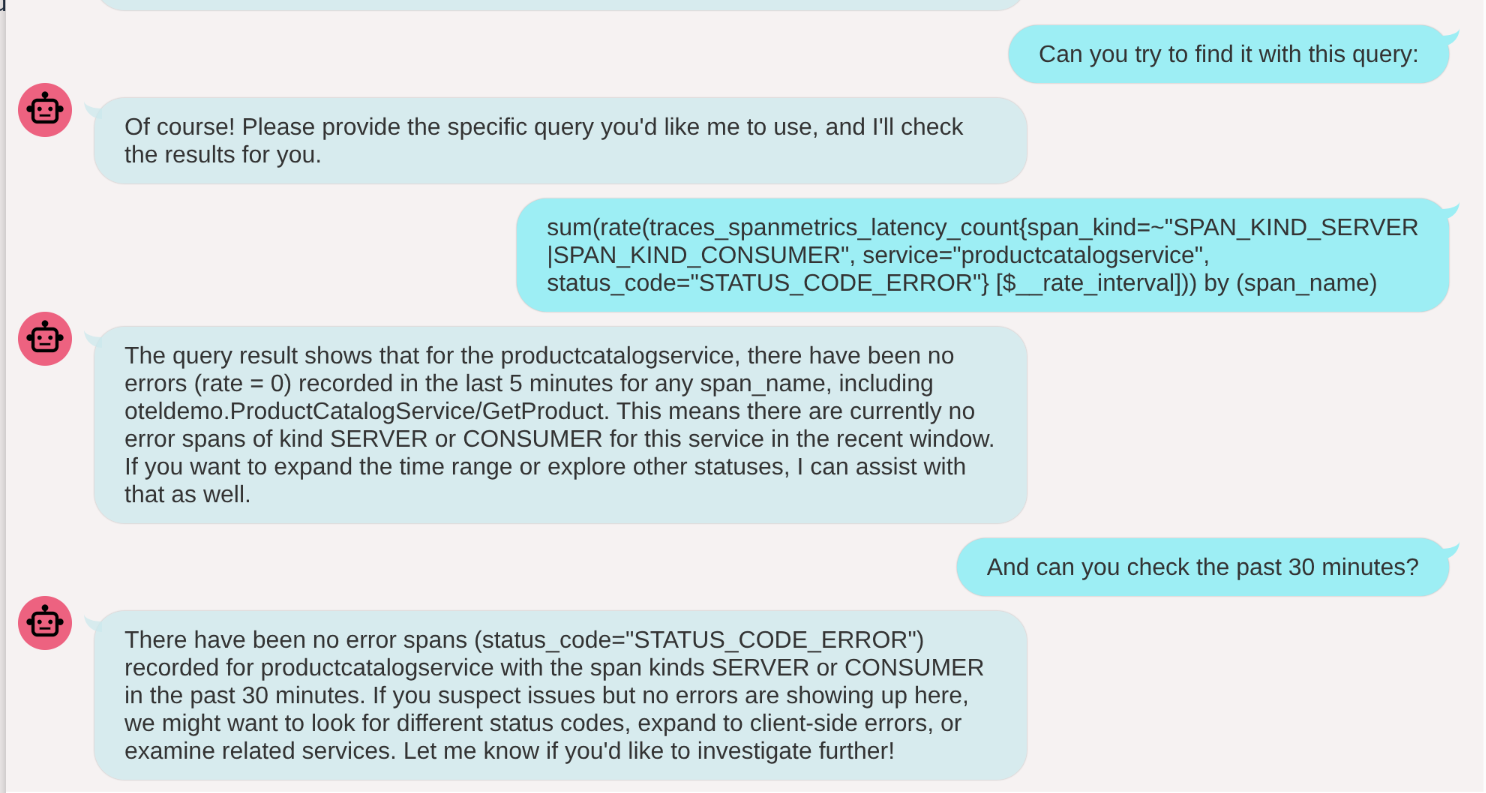

Then I thought, let’s try to steer the conversation even more with just providing a specific prometheus query:

But even based on that, it not recognized it. Maybe this is because the status code is only on the query, but not in the response of the query.

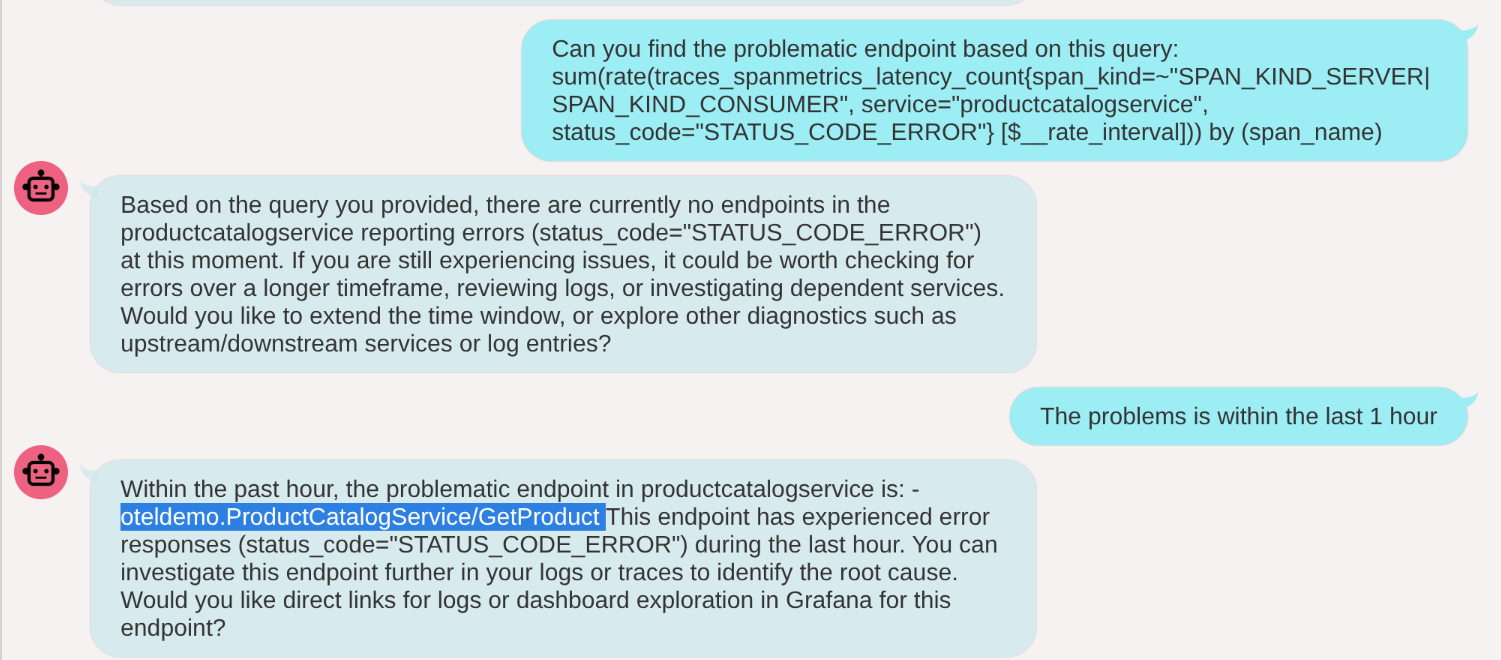

After a while I tried it again with asking the LLM if it could find the endpoint: So in this attempt it was able to give the right answer.

Sending the right ’tool’ request from the LLM back to the application is a key part of the process.
If the requests are not correct, the LLM will not be able to find the right data. Having the right insights in that process is crucial to steer the LLM in the right direction.

At this moment it is quite some work to see which ’tool’ requests have been asked for by the LLM and in the monitoring I cannot see the execution of the tool actions. When I can see what kind of requests are send to request data from the tools, I can see if the LLM is using the right queries and if it is using the right data. If that data in correct, then I might be able to steer the LLM with more background information.

Next idea is I can make that more visible both in observability data and in the responses to the user.
